Setup settings on Android

2.1 Library arr​

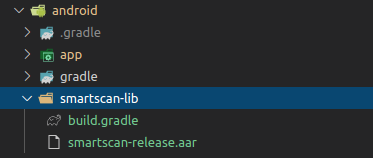

Put smartscan-release.arr into the folder smartscan-lib in android path.

Docusaurus

2.2 jniLibs folder​

Put the decoding library files you received under app/src/main/jniLibs in your project

Docusaurus

app/src/main/jniLibs
app/src/main/jniLibs/arm64-v8a/libicaredecoders.so
app/src/main/jniLibs/armeabi-v7a/libicaredecoders.so
app/src/main/jniLibs/x86/libicaredecorders.so
app/src/main/jniLibs/x86-64/libicaredecorders.so

2.3 Enable permissions and activity in AndroidManifest.xml​

If you don't use the demo provided by Icare don't forget to check the next steps.

2.3.1 Permissions​

In order to have access to the camera, you must enable all the permissions :

<!-- smart scan permissions -->
<uses-permission android:name="android.permission.FLASHLIGHT" />
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.VIBRATE" />

<uses-feature android:name="android.hardware.camera2.full" />
<uses-feature
    android:name="android.hardware.camera.autofocus"
    android:required="false" />
<uses-feature
    android:name="android.hardware.camera.flash"
    android:required="false" />
<!-- smart scan permissions -->

2.3.2 Activity​

Then you must add the smartscan activity to the manifest :

<!-- smart scan activity -->
<activity
    android:name=".ScanActivity"
    android:theme="@style/Theme.AppCompat"
    >
</activity>
<!-- smart scan activity -->

2.4 Enable smartscan lib (settings.gradle)​

In the android/settings.gradle file you must enable smartscan for gradle.

You must change this line :

include ':app'

with :

include ':app', ':smartscan-lib'

2.5 Enable libraries (src/build.gradle)​

You must add the librairies in the android/app/src/build.gradle, into dependecies section :

// Smartscan libraries <START>
implementation fileTree(include: ['*.jar'], dir: 'libs')
implementation 'androidx.appcompat:appcompat:1.0.0'
implementation 'com.android.support:appcompat-v7:28.0.0'
implementation 'androidx.legacy:legacy-support-v4:1.0.0'
implementation 'com.google.android.material:material:1.0.0'
implementation project(':smartscan-lib')
// Smartscan libraries <END>

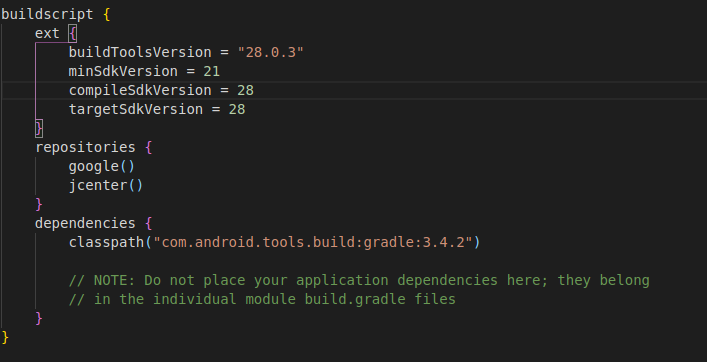

2.6 Check minimum version​

The minimal SDK version supported by SmartID Scan is 21.

Please ensure that the minSdkVersion is set to 21 or more.

minSdkVersion = 21

Docusaurus

2.7 Check that androidX and jetifier enabled​

You must have android X and jetifier enabled to be able to use smartscan.

Check that the android/gradle.properties.

# Those options must be true !
android.useAndroidX=true
android.enableJetifier=true
